Reporting

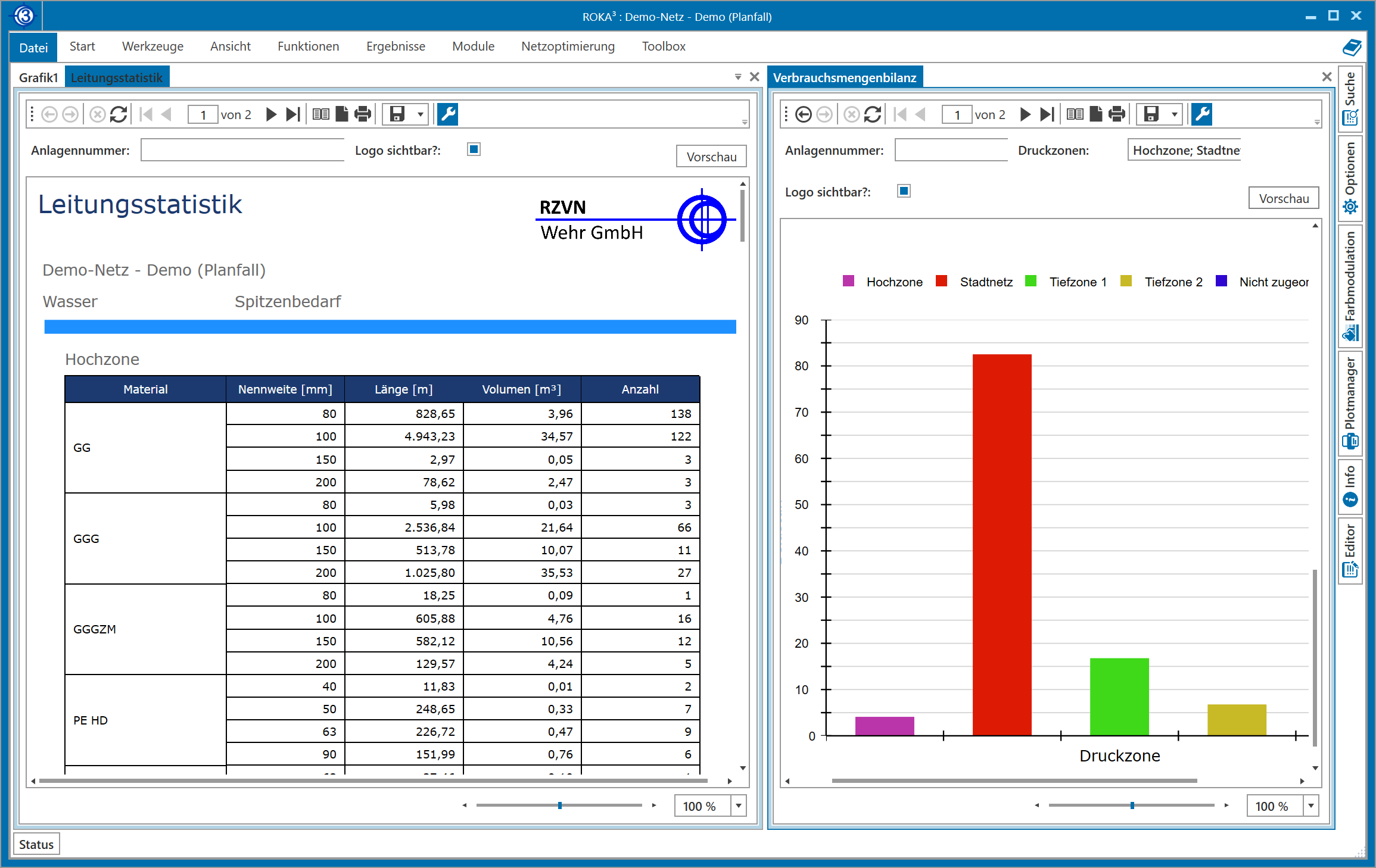

Predefined reports give a quick summary of the most relevant hydraulic results. Critical values (minimum pressure, maximum velocity, etc.) and summations (total demand, total pipe length, etc.) are represented as tables and charts. Reports support common data formats (MS-Word ®, MS-Excel ®, MS-Powerpoint ®, PDF) for a seamless integration in other documents or presentations. ensures .

Professional Plotting

Define true-to-scale plots with extensive styling options and custom legends. Plot folder combine several plots into a single PDF file, enabling multi-page plots at high resolutions. Plot settings and plot folders are saved to the network model and thus can be easily reused. ROKA³ comes now with the ability to include high resolution background web maps in plots.

Interactive simulation report

The simulation report contains essential messages from the simulation engine such as warnings for violations of limits (e.g. defined maximum flows fro valves). With a single click the respective network object is displayed in the network graphics.

Dynamic charts

Dynamic (multi time steps) simulation results can be displayed in configurable dynmic charts. Combine different result values and network objects into a single chart. Multiple options to customize the chart appearance and the support for common export formats (PDF, PNG, EXCEL) ensure a seamless .
